we successfully implemented aqua-cool cooling system for (CONDENSATE COOLING AND RECYCLING) in sugar mills , whereby sugar mills saved precious water.

CONSERVE WATER... IT'S PRECIOUS.

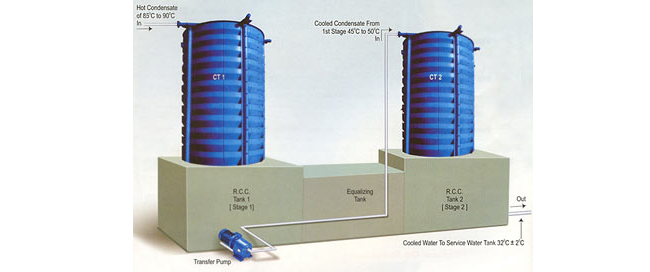

AQUA - COOL COOLING SYSTEM FOR CONDENSATE COOLING & RECYCLING IN

SUGAR MILLS

Application: Cooling and recycling of hot condensate to be reused as service water. Description:
  • Sugar Mill generates approx 500 m3 / day of excess condensate in 3500 TPD Plant.
  • Major hurdle in reusing this excess condensate is the high temperature (85C to 90C). By using Aqua-Cool two stage cooling system it is cooled down to 32C (+/-2C)
Stage I:
  • Hot condensate temperature at inlet to 1st cooling tower 85C to 90C.
  • Temperature of condensate out from 1st stage 45C to 50C
Stage II:
  • Temperature of water outlet from 2nd Cooling Tower 32C 320C (+/-2C)
  • This cooled water is then fed to service water tank for reuse.
2.Introduced our cooling towers as effluent evaporators in chemical Industries.
