We successfully implemented aqua-cool cooling system for (CONDENSATE COOLING AND RECYCLING) in sugar mills , whereby sugar mills saved precious water.

CONSERVE WATER... IT'S PRECIOUS.

AQUA - COOL COOLING SYSTEM FOR CONDENSATE COOLING & RECYCLING IN.

Application

Cooling and recycling of hot condensate to be reused as service water.

Description

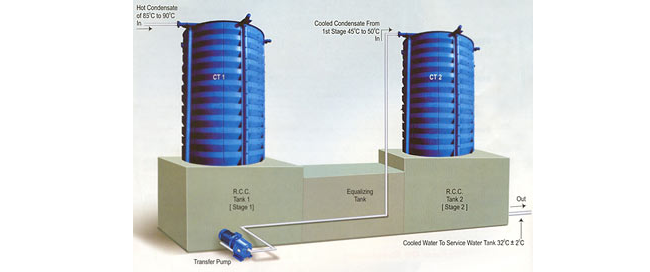

Sugar Mill generates approx 500 m3 / day of excess condensate in 3500 TPD Plant. Major hurdle in reusing this excess condensate is the high temperature (85°C to 90°C). By using Aqua-Cool two stage cooling system it is cooled down to 32°C (+/-2°C).

Stage I

• Hot condensate temperature at inlet to 1st cooling tower 85°C to 90°C.
• Temperature of condensate out from 1st stage 45°C to 50°C.

Stage II

• Temperature of water outlet from 2nd Cooling Tower 32°C 320C (+/-2°C).
• This cooled water is then fed to service water tank for reuse.
